Spot UV Finish Salon Products Packing Box Super Diffuser Packaging

Short Description:

Model No.: Electrical Appliance Packaging Box HX-3012

The box dimensions: fit your product.

Printing: customized.

Materials: thin F-flute corrugated board.

Surface treatment: matte lamination & spot UV, or as per your requirement.

Purpose: packaging for home appliance, daily necessaries, toy, etc.

Sample fee: 1 or 2 plain samples is free, freight collected.

Printing sample fee: please check it with us.

Accessories: manual, flyer or thank you card can be offered as well.


Product Detail

Material Structure and Application

Box Type and Finish Surface

Product Tags

Description

This is a Super Diffuser packaging box, matte surface, with spot UV finish for logo and main image (the embossing & debossing can be done as well). At top of this box, there is locking tab, and the bottom is self locking. The materials is 0.9mm F-flute corrugated board, it’s thin but high density.

Basic Info.

Product Name

Super Diffuser packaging box

Surface Treatment

Matte Lamination+ Spot UV

Box Style

Tuck top product box

Logo Printing

Customized Logo

Material Structure

3 layers, white cardboard paper/Duplex paper is mounted together with corrugated board.

Origin

Ningbo city,

China

Weight

32ECT, 44ECT, etc.

Sample type

Printing sample, or no print.

Shape

Rectangle

Sample Lead Time

2-5 working days

Color

CMYK Color, Pantone Color

Production Lead Time

12-15 natural days

Printing mode

Offset Printing

Transport Package

Standard export carton

Type

One Side Printing Box

MOQ

2,000PCS

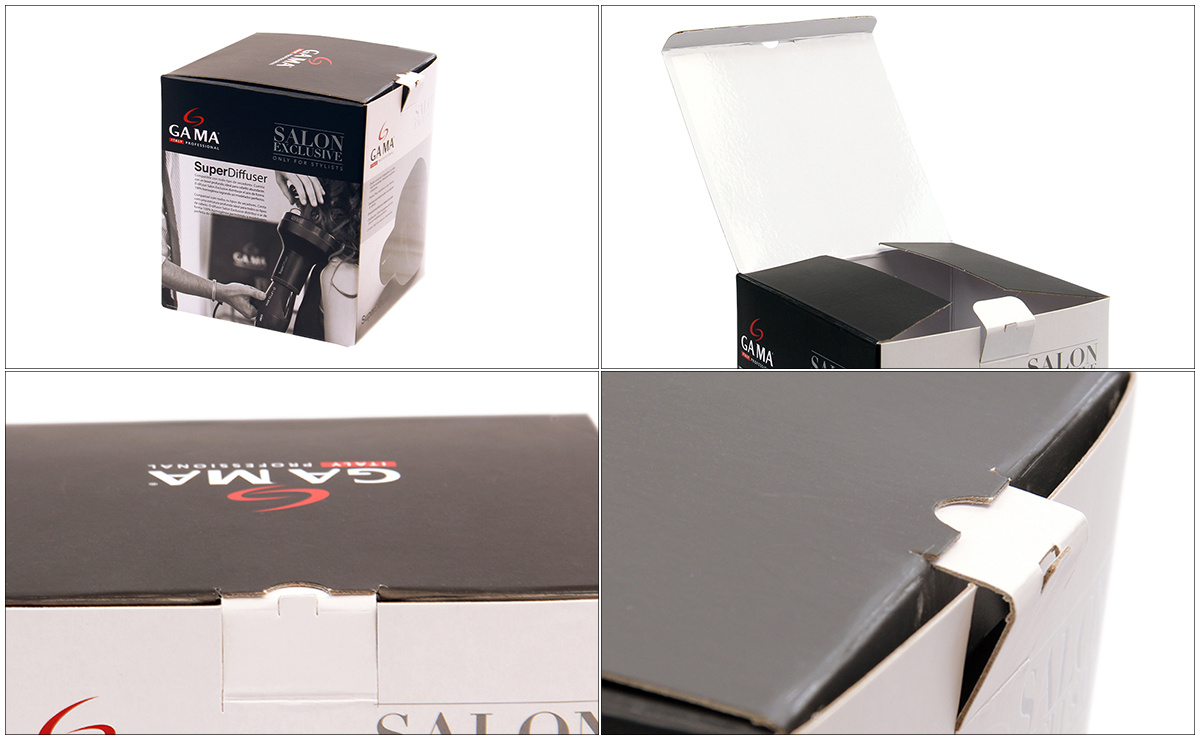

Detailed Images

These details are used to show the quality, such as materials, printing and surface treatment.

图片 5

Customer Question & Answer

Please contact customer service for more information.
Your response of following questions will help us recommend the most suitable package.


  • Previous:
  • Next:

  • Material Structure and Application

    Corrugated paperboard can be divided into 3 layers, 5 layers and 7 layers according to the combined structure.

    The thicker “A Flute” corrugated box has better compressive strength than “B Flute” and “C Flute”.

    “B Flute” corrugated box are suitable for packing heavy and hard goods, and are mostly used for packing canned and bottled goods. “C Flute” performance is close to “A Flute”. “E Flute” has the highest compression resistance, but its shock absorption capacity is slightly poor.

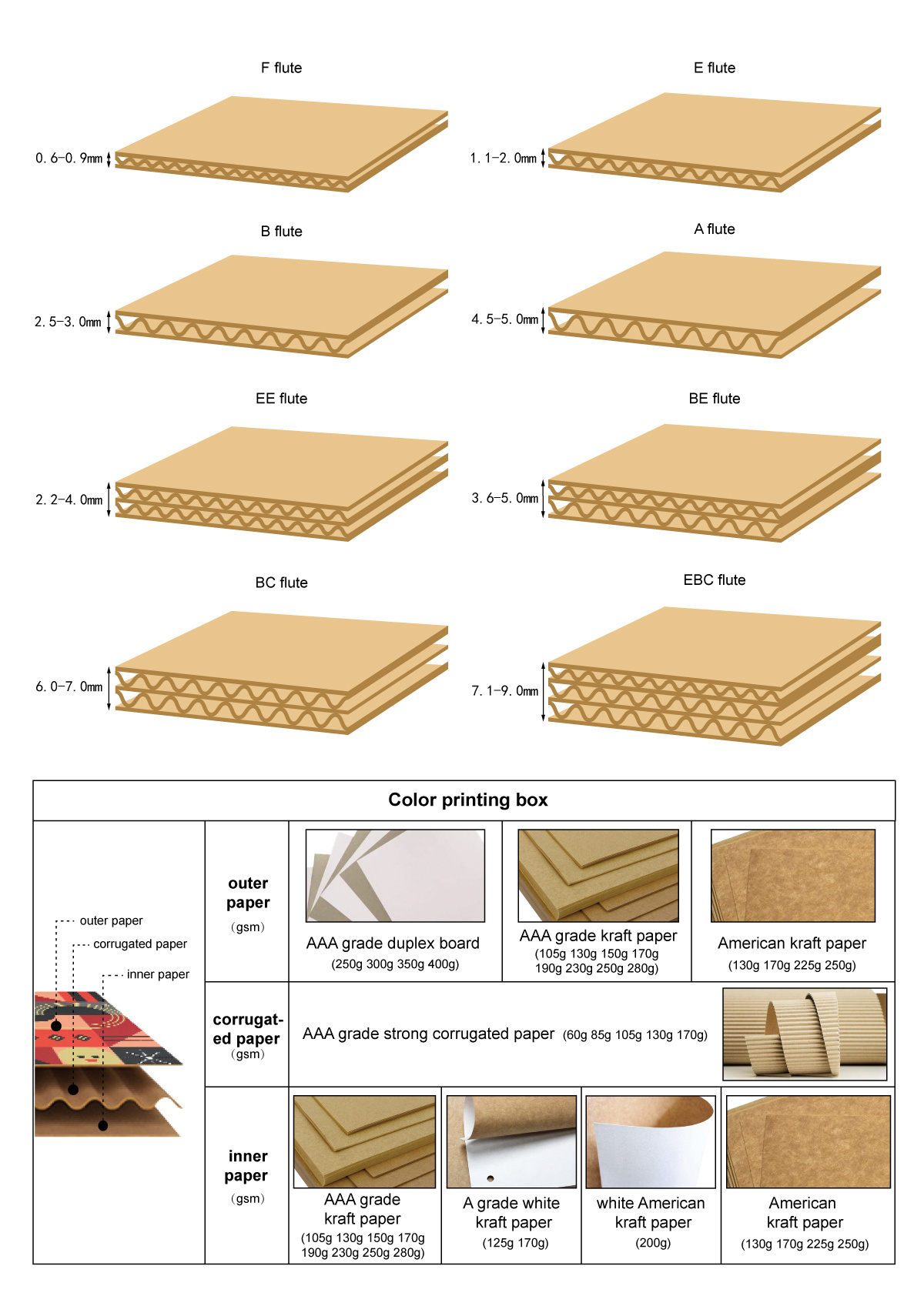

    Corrugated Paperboard Structure Diagram

    图片 6

    Packaging Applications

    图片 7

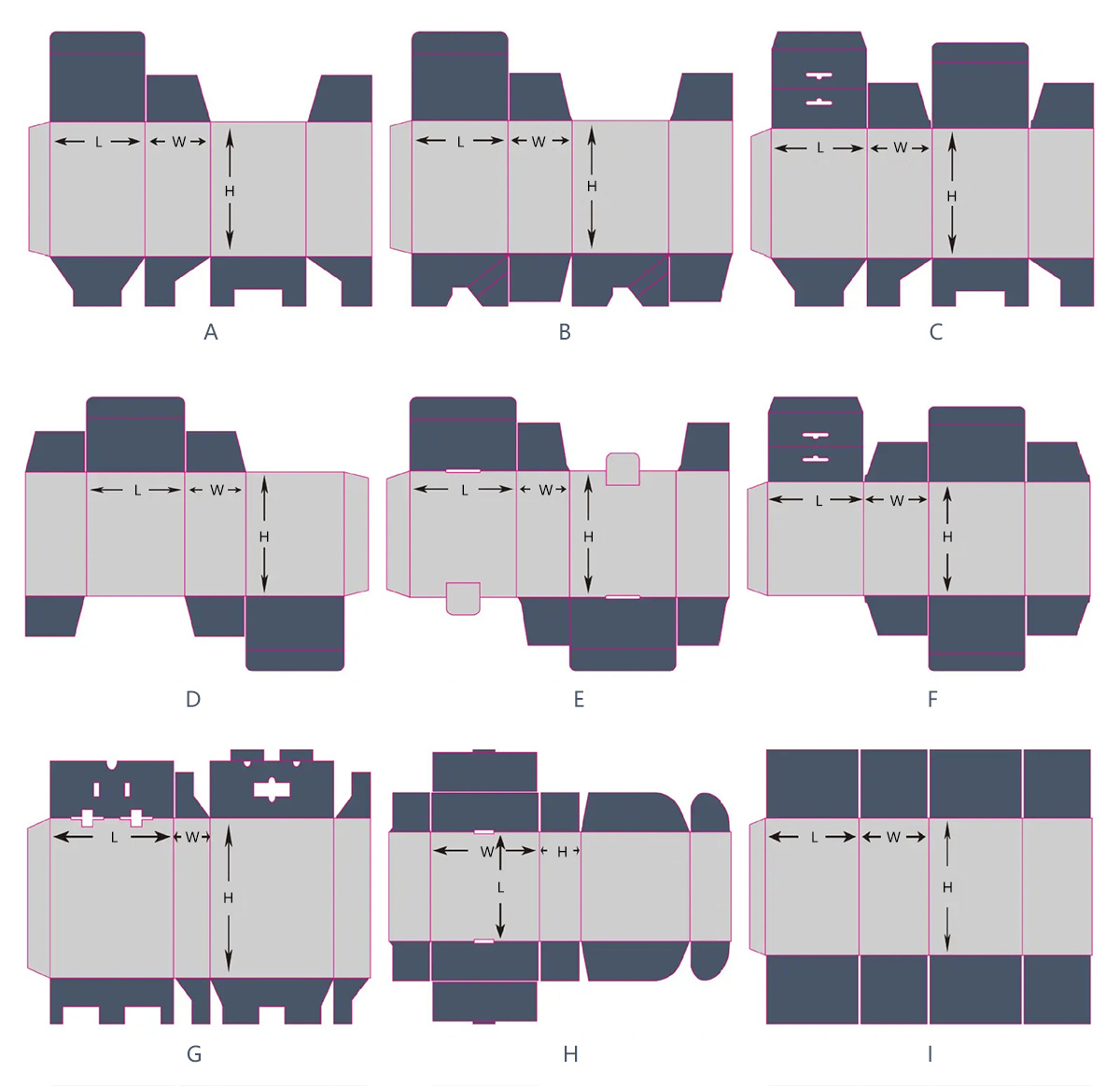

    Box Type and Finish Surface

    These box type are used for reference, it can be customized as well.

    图片 8

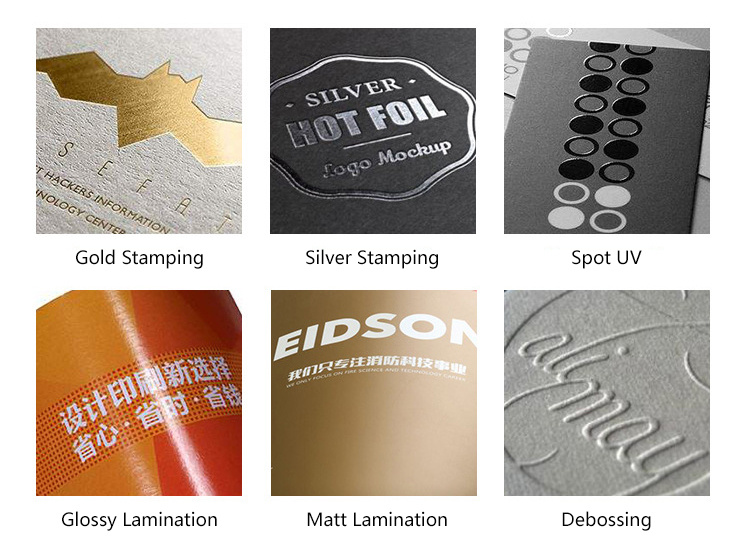

    The surface treatment process of printed products generally refers to the post-processing process of printed products, in order to make the printed products more durable, convenient for transportation and storage, and look more high-end, atmospheric and high-grade. Printing surface treatment includes: lamination, spot UV, gold stamping, silver stamping, concave convex, embossing, hollow-carved, laser technology, etc.

    Common Surface Treatment As Follows

    图片 9

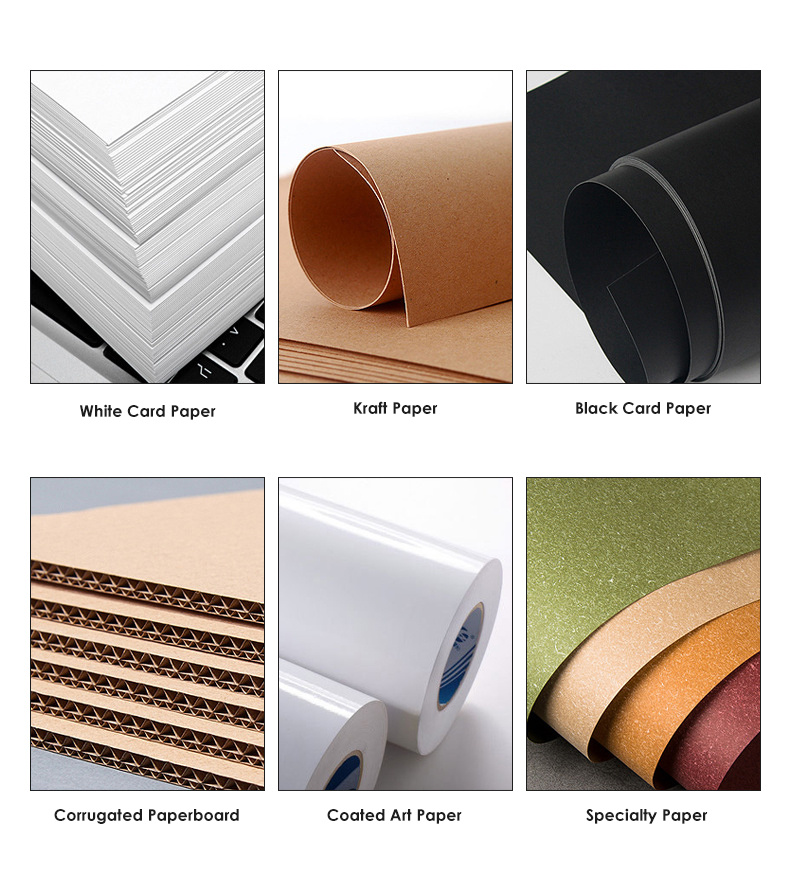

    Paper Type

    图片 10

    White Card Paper

    Both sides of the white card paper are white. The surface is smooth and flat, the texture is hard, thin and crisp, and can be used for double-sided printing. It has relatively uniform ink absorption and folding resistance.

    Kraft Paper

    Kraft paper is flexible and strong, with high breaking resistance. It can withstand large tension and pressure without cracking.

    Black Card Paper

    Black cardboard is colored cardboard. According to different colors, it can be divided into red card paper, green card paper, etc. Its biggest drawback is that it can not print color, but it can be used for bronzing and silver stamping. The most commonly used is white card.

    Corrugated Paperboard

    The advantages of corrugated paperboard are: good cushioning performance, light and firm, sufficient raw materials, low cost, convenient for automatic production, and low packaging cost. Its disadvantage is poor moisture-proof performance. Humid air or long-term rainy days will cause the paper to become soft and poor.

    Coated Art Paper

    Coated paper has smooth surface, high whiteness and good ink absorption performance. It is mainly used for printing advanced picture books, calendars and books, etc.

    Specialty Paper

    Special paper is made by special paper processing equipment and technology. The processed finished paper has rich colors and unique lines. It is mainly used for printing covers, decorations, handicrafts, hardcover gift boxes, etc.
