Mark S M L Window Cardboard Paper Handle Box for Spray Head Protection

Short Description:

Model No.: Paper card Box-HX23-52

Welcome customized, let your products unique.

Size:  L85 * W 35* H 140mm       customized

Color:  customized

Feature: Paper box with paper handle and window

Material choice :ivory board, art paper, black paper, special paper, etc.

MOQ: 2000pcs

Lead time: 1-80000pcs, 7-12 working days after confirmed files.

≥80000pcs, to be negotiated.

Application scenarios: hang box on shelf in the supermarket, using package for light small products, such as spray, head protection,hair ornament, tie and so on.

Product Detail

Material Structure and Application

Box Type and Finish Surface

Product Tags

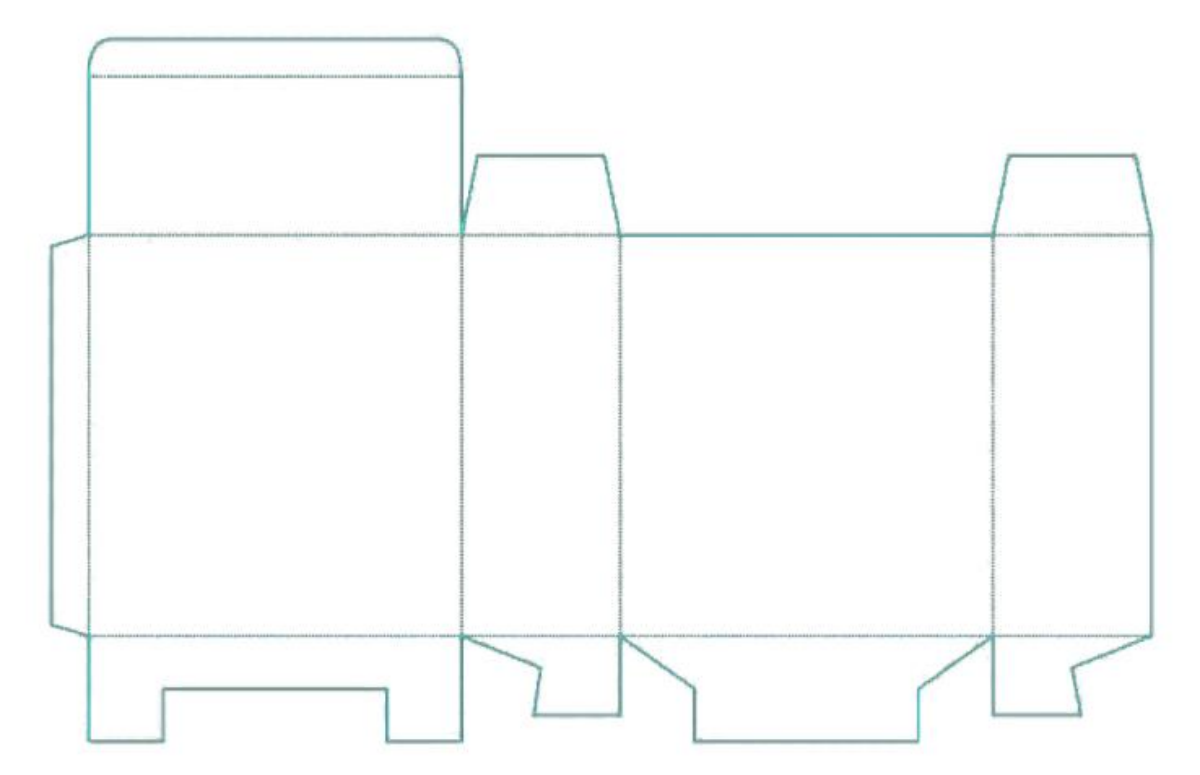

Structure: self-form bottom structure C box

Surface paper choose: coated duplex board with gray board; solid bleached sulphate board( C1S/SBS/SBB); coated paper(C2S)

Printing: UV printing ; Offset printing ; Water-based printing

Opening direction: top opening to show whole products

Structure  self-form bottom structure C box
Surface paper choose  coated duplex board with gray board; solid bleached sulphate board( C1S/SBS/SBB); coated paper(C2S)
Printing  UV printing ; Offset printing ; Water-based printing
Opening direction  top opening to show whole products
svaba (2)

Basic Info.

Product Name Color Paper box with paper handle Surface finish Varnishing, Glossy Lamination, Matte Lamination
Box Style Structure C Logo Printing oem
Material Gram 300 gram ivory board Origin Ningbo, China
Artwork AI, CAD, PDF,etc. Sample accept
Shape Rectangle, customized Sample Time 5-7 Working Days
Color CMYK Color, Pantone Color Sample type No printed sample; digital sample.
Thickness 300 gsm ivory board-0.4mm;               350 gsm ivory board-0.47mm;    400 gsm ivory board-0.55mm. Transport Package Strong 5 ply Corrugated Carton
Window Oem shape and size Business term FOB, CIF,DDU,etc.

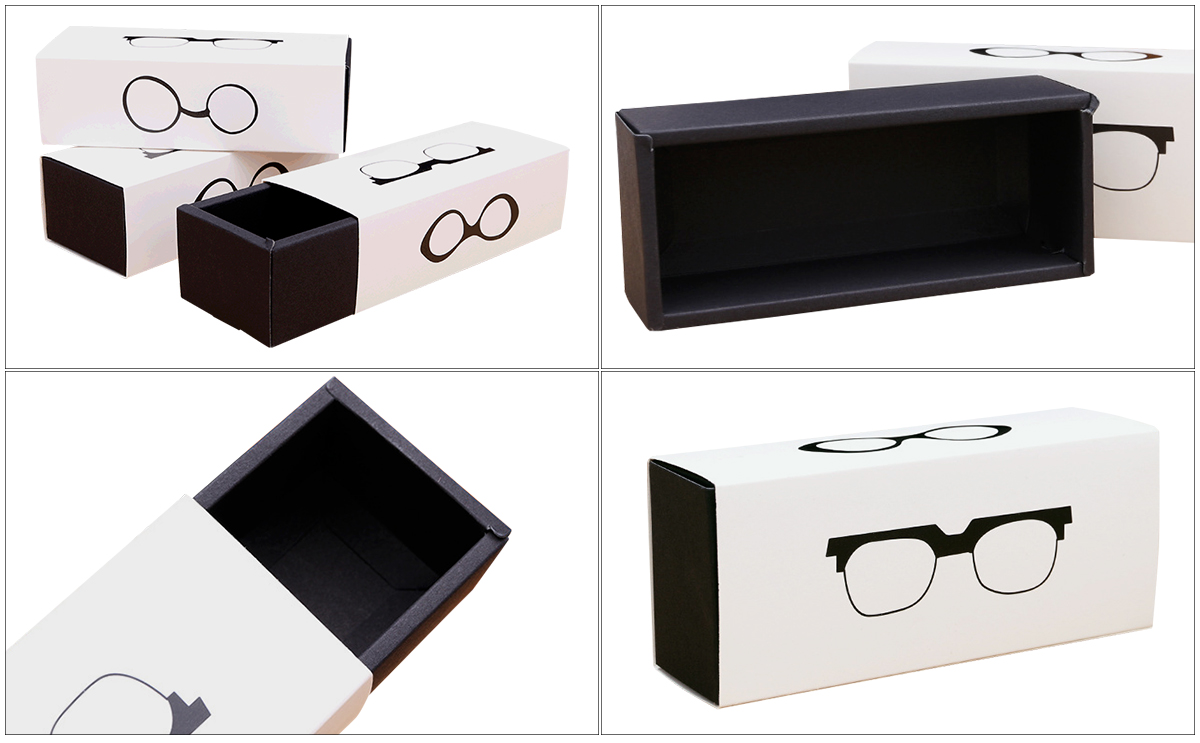

Detailed Images

Product Department: Quality assurance, to ensure that products are produced according to customer

requirements. Periodic checks and inspections are performed on each process.

Design Department: Experienced engineers provide design support in terms of structure and materials.

Sample Department: Provide free samples

within a certain period of time for customers to check the quality before ordering.

Inspection Department: A professional team inspects all products before shipment to ensure that the final  delivered products are free from defects or blemishes.

After-sales service: A professional service team is on call at any time to provide solutions and suggestions on product use and maintenance for customers' after-sales consultation.

svaba (3)

Material Structure and Application

The advantage of the paper packaging box is that it can be recycled and has good environmental

protection performance, and it can also use different paper materials according to customer needs.

Kraft paper has high water resistance and stain resistance; batik printing paper has a good

surface gloss, is easy to color, and has outstanding effects;coated paper has a metallic feel, good light transmittance, and outstanding printing effects;

UV marking; embossed board is mainly used for producing colorful cards or small boxes.

In addition, there are UV light curing processing, electroplating processing, embossing printing  processing and water-based tape packaging for customers to choose.

svaba (4)

Box Type and Surface Treatment

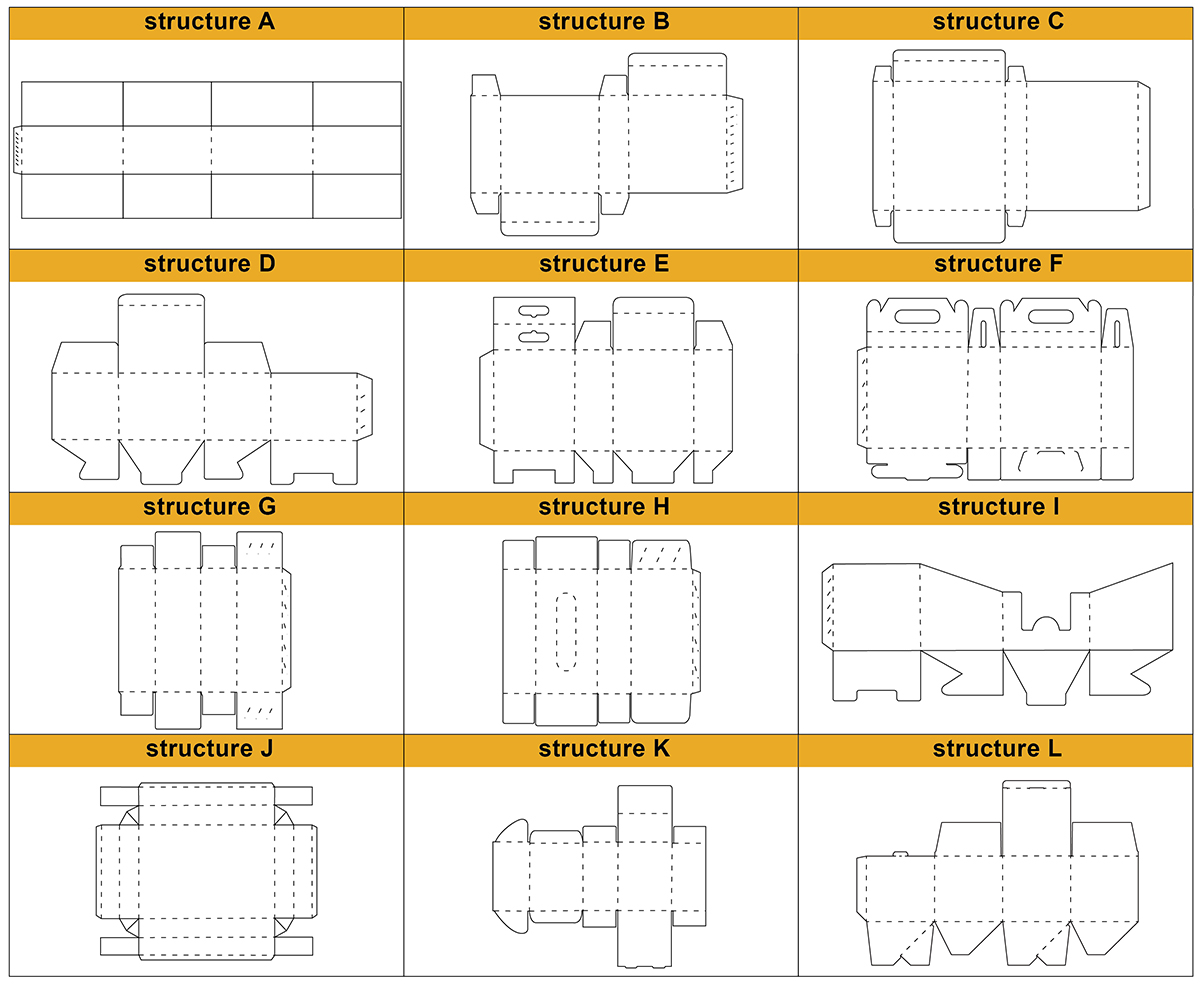

Main structure

svaba (5)

Surface Finishing

Surface Finish
Printing surface treatments give printed products their unique look, allowing them to grab attention. In the market, Matt Lamination, Gloss Lamination, Hot Stamping, Hot Silver, Spot UV and Embossing are currently the most popular printing surface treatment technologies. These technologies can be used to directly print graphics or text on promotional slogans, and can also be used to change the overall decorative style of the housing.

Different surface treatment methods will cause different effects:
1.Matte film: black/white/envelope/snow white/orange peel/star;

2.Laminated film: high gloss/thickness 0.03mm;

3.Bronzing: crystal gold/good gloss/good permanence;

4.Hot silver: shining like crystal sand / natural smell / making it born;

5.Spot UV: Super large UV processing area-4*5cm, high contrast, strong three-dimensional effect;

6.Concave-convex: 3D three-dimensional 'physical' effect, attracting eyeballs;

As a novice, if you want to choose the correct surface treatment method and achieve good results:

1)you must first make a budget carefully and choose the appropriate method according to the situation;

2)seek help from industry experts if necessary;

3) try Do some mock tests.In short, printing surface treatment is a magical knowledge; images, text or graphics can be imagined accordingly; different types of bionics can be used to present them instinctively.

Common Surface Treatment As Follows

svaba (1)

Customer Question & Answer

Please contact customer service for more information.

Your response of following questions will help us recommend the most suitable package.

  • Previous:
  • Next:

  • Material Structure and Application

    Paperboard is a thick paper-based material. While there is no rigid differentiation between paper and paperboard, paperboard is generally thicker (usually over 0.30 mm, 0.012 in, or 12 points) than paper and has certain superior attributes such as foldability and rigidity. According to ISO standards, paperboard is a paper with a grammage above 250 g/m2, but there are exceptions. Paperboard can be single- or multi-ply.

    图片 6

    Paperboard can be easily cut and formed, is lightweight, and because it is strong, is used in packaging. Another end-use is high quality graphic printing, such as book and magazine covers or postcards.

    Sometimes it is referred to as cardboard, which is a generic, lay term used to refer to any heavy paper pulp–based board, however this usage is deprecated in the paper, printing and packaging industries as it does not adequately describe each product type.

    Terminology and classifications of paperboard are not always uniform. Differences occur depending on specific industry, locale, and personal choice. In general, the following are often used:

    Boxboard or cartonboard: paperboard for folding cartons and rigid set-up boxes.

    Folding boxboard (FBB): a bending grade capable of being scored and bending without fracture.

    Kraft board: a strong virgin fiber board often used for beverage carriers. Often clay-coated for printing.

    Solid bleached sulphate (SBS): clean white board used for foods etc. Sulphate refers to the kraft process.

    Solid unbleached board (SUB): board made from unbleached chemical pulp.

    Containerboard: a type of paperboard manufactured for the production of corrugated fiberboard.

    Corrugated medium: the inner fluted portion of corrugated fiberboard.

    Linerboard: a strong stiff board for one or both sides of corrugated boxes. It is the flat covering over the corrugating medium.


    Binder’s board: a paperboard used in bookbinding for making hardcovers.

    Packaging applications

    图片 7

    Box Type and Finish Surface

    These box type are used for reference, it can be customized as well.

    图片 8

    The surface treatment process of printed products generally refers to the post-processing process of printed products, in order to make the printed products more durable, convenient for transportation and storage, and look more high-end, atmospheric and high-grade. Printing surface treatment includes: lamination, spot UV, gold stamping, silver stamping, concave convex, embossing, hollow-carved, laser technology, etc.

    Common Surface Treatment As Follows

    图片 9

    Paper Type

    图片 10

    White Card Paper

    Both sides of the white card paper are white. The surface is smooth and flat, the texture is hard, thin and crisp, and can be used for double-sided printing. It has relatively uniform ink absorption and folding resistance.
